PACKAGE WINDING RANGE

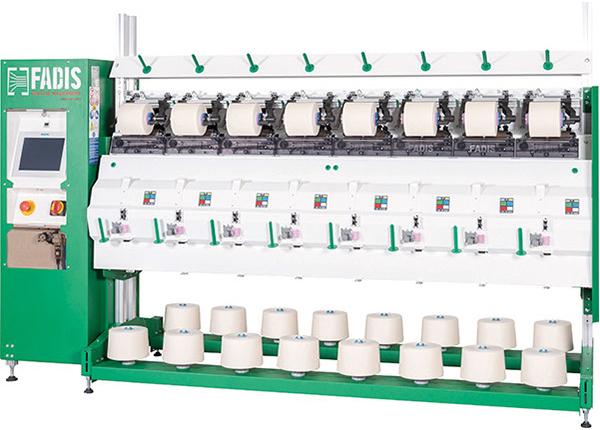

MATRIX FT

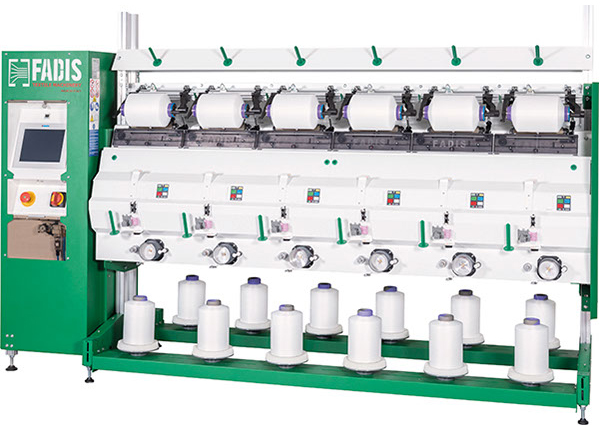

MATRIX FC

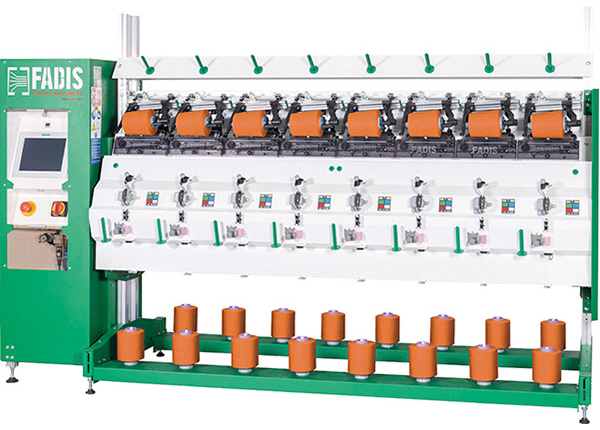

MATRIX RT

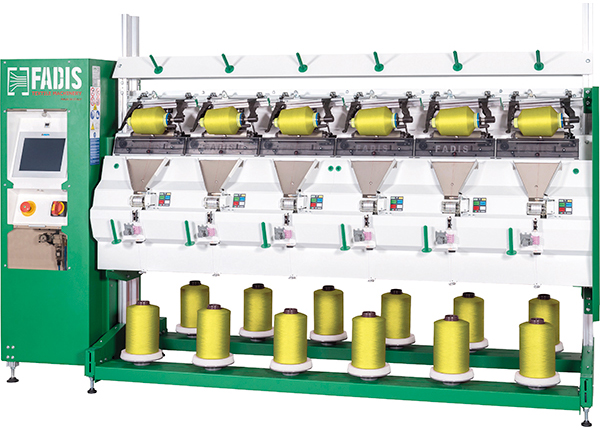

MATRIX RC

SOFT WINDER - REWINDER

The electronic yarn guided soft winding machines and rewinding machines of Fadis’s MATRIX range, introduced in 2015, are meant to process all types of staple fibre yarns and textured filament yarns. Designed for winding speeds as high as 1.500 m/min (mechanical speed up to 1.900 m/min) they undoubtedly are the most evolved and efficient machines available on the market today with this technology.

Fadis, leader in this field, consolidates its position with a constant engagement in research, development and application of the best technical solutions to reach the best performances in the winding technology. Soft winding and rewinding are two fundamental phases of the entire production cycle, where, producing perfect packages is very important to guarantee the best quality during the subsequent working processes.

SOFT WINDING:
With the MATRIX FT FC machines it is possible to obtain “soft” packages ready for dyeing with optimal and constant density and with an accurate yarn laying, that guarantee the best possible dip penetration during the dyeing phase, a perfect uniformity between the inner and outer part of the soft package.

REWINDING:
With the MATRIX RT RC machines it is possible to produce perfectly homogenous bobbins which, in the following weaving, knitwear, hosiery knitting and other similar processes, guarantee perfect yarn unwinding without tears and with a uniform tension.

Nowadays, weaving and knitting machines work at increasingly higher speeds, consequently requiring feed bobbins that guarantee a perfect unwinding in order to avoid continual yarn breakages and defects on the final fabrics.

This is only possible with the electronic yarn guide technology that allows a homogeneous yarn laying without any patterning and to our “Tens Control™”  tension device with electronic on-line tension control where is possible to obtain packages all with the same hardness, thus avoiding the problem of fabrics faults due to different yarn tensions.

Using the bobbins produced on our MATRIX RT RC machines it is possible to obtain such results, drastically reducing the number of breakages on weaving and knitting machines.
