SINCRO PREMIUM TECHNOLOGY - THE “REAL” PRECISION WINDER

The machines with electronic yarn guide with precision crossing angle of the SINCRO PREMIUM range represent the maximum expression of the winding technology.Thanks to a long company experience, to the most advanced technologies and to the innovative solutions, the SINCRO PREMIUM machines offer the topmost quality, productivity, reduced operating costs and versatility available on the market today:

• Quality: because they absolutely ensure the best possible yarn laying control, thanks to the technical solutions that have been adopted.


• Productivity: because thanks to their constructional design, they can reach high winding speeds (up to 2.250 m/min - 2.750 m/min mechanical speed), thus requiring a lower investment in order to obtain the same production compared with less performing machines.


• Operating costs: because, thanks to the technologies used and in comparison with all the other machines available on the market, they are the ones that absolutely consume less energy and maintenance materials, in addition to that, they do not need neither additional fans nor cooling system.


• Versatility: ​because, thanks to the possibility of processing all types of yarns, of programming all  process parameters through the Touch Screen industrial PC, and to their “open platform” constructional design, the SINCRO PREMIUM machines can meet all present and future market requirements.


In order to guarantee fulfillment of such objectives, FADIS, in developing the SINCRO PREMIUM range, has chosen not to come to any compromise and to adopt all possible, superior and inevitable technologies which may be thus summarized:

• Universal winder  with precision crossing angle for all types of yarns with the possibility of choosing the best winding system for each type of yarn.
• Electronic yarn guide controlled by the Touch Screen industrial PC.
• Positively driven bobbin.
• Double flange take-up tube support: guarantees the excellent control and structural stability of the bobbin for a better and faster winding.
• Yarn guide sliding with linear technology between two tangent points.
• Use of the carbon fiber technology.
• Use of the brushless motor technology.
• Pneumatic digital control of the pressure of take-up arms with a resolution of 0,01 bar.
• High precision digital meter counter with a tolerance of up to +/- 0,25% (+/- 0,6% for SINCRO T PREMIUM).
• Automatic on-line yarn tension control  with a resolution of 0,1 g.
• Automatic on-line package density control with tolerance of up to +/- 0,005 g/cm3 (+/- 0,010 g/cm3 for SINCRO T PREMIUM)

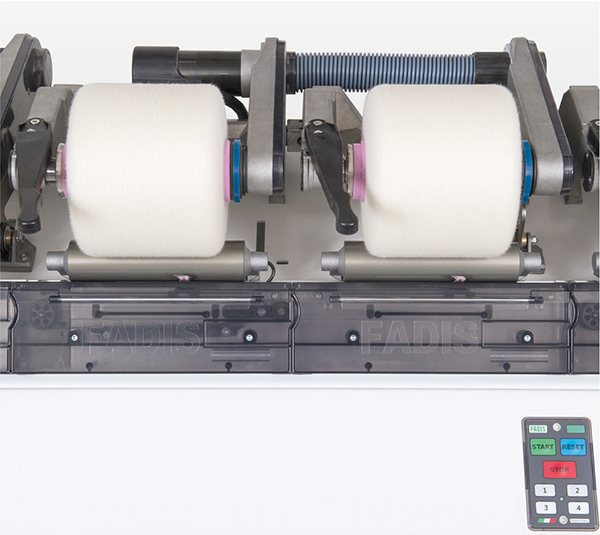

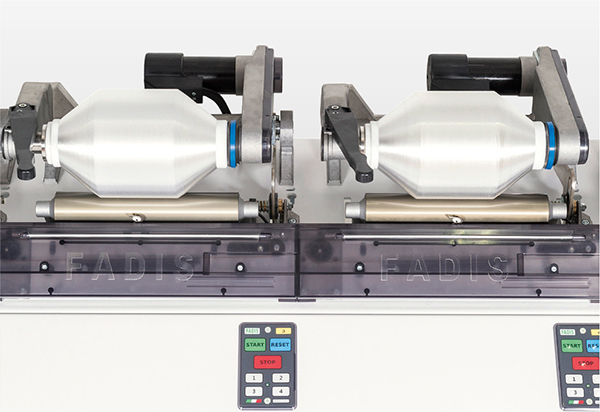

WINDING SPINDLE
V​ery sturdy extruded aluminum structure. The electronic yarn guide system uses the technology of linear sliding between two tangent points and is made with highly technological materials.

The yarn guide is mounted on a very resistant timing belt, which rotates on two positive drive pulleys, and is driven by an inverter  controlled step motor in turn controlled by the Touch Screen industrial PC.

This system not only allows the yarn guide’s perfect sliding, but also to reach 1.100 double strokes per minute and to work under dry conditions (without oil or grease), thus eliminating all lubrication and maintenance problems and greatly reducing electric energy consumption.
